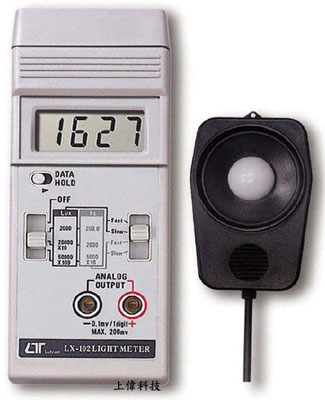

LX-102 照度計

特色

• 測量範圍 :

              0 ~ 20000 LUX / 0 ~ 200.0 Fc

              2000 ~ 20000 LUX / 200 ~ 2000 Fc

              20000 ~ 50000 LUX / 2000 ~ 5000 Fc

• LUX (照度) / Ft-cd (呎/燭光) 單位選擇切換.

• 感光器光譜反應符合C.I.E規範.

• 精確度 : ±5%.

• 讀值鎖定及類比訊號(mV)輸出功能.

• Size : 163 x 70 x 30mm.

FEATURES

► Sensor used the exclusive photo diode & color correction filter, spectrum meet C. I. E. photopic.

► Sensor COS correction factor meet standard.

► Separate LIGHT SENSOR allows user take measurements of an optimum position.

► Precise and easy readout, wide range.

► High accuracy in measuring

► Built-in low battery indicator.

► LSI-circuit use provides high reliability and durability.

► LCD display provides low power consumption.

► Compact, light-weight, and excellent operation.

► LCD display can clearly read out even of high ambient light.

一般規格

顯示 (Display)

13 mm ( 0.5" ) LCD.

測量 (Measurement)

Lux, Foot-candle. Data hold, Analog output.

範圍 (Ranges)

Lux : 0 to 50,000 Lux, 3 ranges.

Ft-candle : 0 to 5,000 Ft-candle, 3 ranges.

歸零調整 (Zero adjustment)

Internal adjustment .

過載輸入指示 (Over Input )

Indication of "1 "

取樣時間 (Sampling time)

Approx. 0.4 second.

感應器結構 (Sensor structure)

The exclusive photo diode & color correction filter.

輸出 (Output)

Analog output.

操作溫度 (Operating Temp. )

 0 to 50 ℃. (32 to 122° F)

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent

電源損耗 (Power Consumption)

Approx. DC 2 mA

重量 (Weight)

220g ( 0.52 LB ) with batteries.

體積 (Dimension)

Main Instrument : 163x70x30 mm(6.4x2.8x1.2 inch )

Sensor probe : 82x55x7 mm ( 3.2x2.2x0.3 inch ).

附件 (Standard Accessory)

Instruction manual............1 PC.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

類比輸出 (ANALOG OUTPUT)

0.1 mV/1 digit, Max. 200.0 mV.
