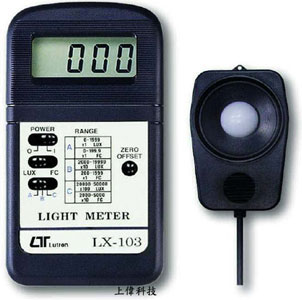

LX-103 照度計

特色

• 測量範圍 :

              0 ~ 2000 LUX / 0 ~ 200.0 Fc

              2000 ~ 20000 LUX / 200 ~ 2000 Fc

              20000 ~ 50000 LUX / 2000 ~ 5000Fc

• 精確度 : ±5%.

• 感光器光譜反應符合C.I.E規範.

• LUX(照度)/FC(呎/燭光)單位切換.

• Size : 131 x 70 x 25mm.

FEATURES

► Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.

► Sensor cosine correction factor meet standard.

► Both Lux & Foot-candle measurement, wide range.

► Separate LIGHT SENSOR allows user to measure the light at an optimum position.

► High accuracy in measuring.

► LSI circuit provides high reliability and durability.

► LCD display allows clear readout-out even at high ambient light level.

► Pocket size , easy to carry out & operation.

► Compact, light weight and excellent operation.

► Built-in low battery indicator.

一般規格

顯示 (Display)

13 mm ( 0.5" ) LCD, 3 1/2 digits. Maximum indication 1999.

 測量及範圍 (Measurement & Ranges)

Lux : 0 to 50,000 Lux, 3 ranges.

Ft-candle : 0 to 5,000 Ft-candle, 3 ranges.

感應器 (Sensor)

The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.

過載輸入指示 (Over Input )

Indication of "1 "

操作溫度 (Operating Temp. )

 0 to 50 ℃. (32 to 122° F)

操作溼度 (Operating Humidity)

Max. 80% RH

電源供應 (Power Supply)

DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent

電源損耗 (Power Consumption)

Approx. DC 2.7 mA

重量 (Weight)

195 g/0.43 LB ( including battery )

體積 (Dimension)

Main Instrument : 131 x 70 x 25 mm. ( 5.2 x 2.8 x 1.0 inch ).

Sensor probe : 82x55x7 mm ( 3.2x2.2x0.3 inch ).

附件 (Standard Accessory)

Instruction Manual........ 1 PC.

Sensor probe................ 1 PC.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
