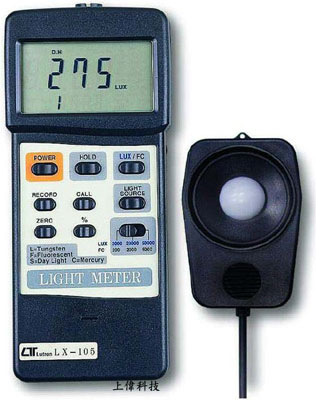

LX-105 智慧型照度計
特色
0~2000 LUX . 0 ~ 200.0 Fc.
2000 ~ 20000 LUX . 200 ~ 2000 Fc
20000 ~ 50000 LUX . 2000 ~ 5000 Fc
-
精確度 : ±4%.
-
感光器光譜反應符合C.I.E規範.
-
內建四種光源係數補償
-
可記錄最大值,最小值及讀值鎖定.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 180 x 72 x 32mm.
FEATURES
► Selection of lighting type (Tungsten, Fluorescent, Daylight or Mercury).
► Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
► Sensor cosine correction factor meet standard.
► Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
► Wide measurement both of Lux & Foot Candle measurement.
► Super large LCD display with contrast adjustment for best viewing angle.
► Dual function meter's display.
► Heavy duty & compact housing case.
► Records Maximum, Minimum and Average readings with RECALL.
► Relative % light measurement.
► Zero adjustment by push button.
► Data hold.
► Auto shut off saves battery life.
► RS 232 PC serial interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 13 mm(0.5") Super large LCD display with contrast adjustment for best viewing angle.
- * Dual function meter's display.
測量及範圍 (Measurement & Ranges)
- Lux : 0 to 50,000 Lux, 3 ranges.
- Ft-candle : 0 to 5,000 Ft-candle, 3 ranges.
- Relativity : 0 - max. 100 % to 1999 %. (depend measuring range & measuring value)
照度型態選擇 (Lighting Type Selection)
- Daylight or Tungsten, Fluorescent, Mercury lamp.
感應器 (Sensor)
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
記憶回叫 (Memory Recall)
- Records Maximum, Minimum and Average readings with RECALL.
歸零調整 (Zero Adj.)
- By push button.
取樣時間 (Sampling Time)
- Approx. 0.4 sec.
電源關機 (Power off)
- Auto shut off saves battery life, or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface
過載輸入指示 (Over Input )
- Indication of "- - - -".
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery (Heavy Duty Type).
電源損耗 (Power Consumption)
- Approx. DC 5.3 mA
重量 (Weight)
- 335 g/0.77 LB
體積 (Dimension)
- Main Instrument : 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch).
- Sensor probe : 85x55x12 mm(3.2x2.2x0.5 inch)
附件 (Standard Accessory)
- Instruction Manual........ 1 PC.
- Sensor probe................ 1 PC.
- Sensor cover.....................1 PC.
選購附件 (Optional Accessories)
- * Hard carrying case, CA-06
- * Soft carrying case, CA-05A
- * RS232 cable, UPCB-01
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
| Lux |
2,000 Lux |
0 - 1,999 Lux |
1 Lux |
± ( 4 % + 2 d ) |
| 20,000 Lux |
1,800 - 19,990 Lux |
10 Lux |
± ( 4 % + 2 d ) |
| 50,000 Lux |
18,000 - 50,000 Lux |
100 Lux |
± ( 4 % + 2 d ) |
| Foot-candle
(Fc)
|
200 Fc |
0 - 186.0 Fc |
0.1 Ft-candle |
± ( 4 % + 2 d ) |
| 2,000 Fc |
167 - 1,860 Fc |
1 Ft-candle |
± ( 4 % + 2 d ) |
| 5,000 Fc |
1,670 - 5,000 Fc |
10 Ft-candle |
± ( 4 % + 2 d ) |
|
