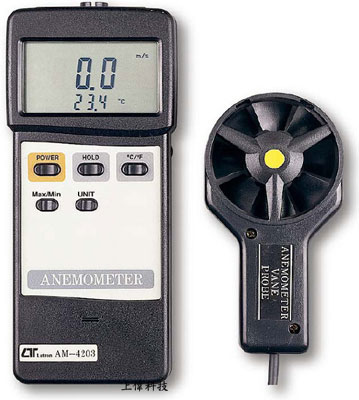

AM-4203 智慧型風速溫度計
特色
0.4 ~ 25.0 公尺/秒
1.4 ~ 90.0 公里/小時
0.9 ~ 55.9 海浬/小時
80 ~ 4930 英呎/分鐘
1.9 ~ 38.8 哩/小時
-
溫度範圍 : 0℃ ~ 50.0°C ( 32.0 ~ 122.0°F ).
-
精確度 : 風速 : ±2% , 溫度 : ±0.°8C.
-
可記錄最大值,最小值及讀值鎖定功能.
-
雙視窗同時顯示風速及溫度.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 180 x 72 x 32mm.
FEATURES
Microprocessor circuit ensures high accuracy and provides special functions and features.
Super large LCD display, display the air low and the temperature reading at the same time.
Dual function display.
Heavy duty & compact case.
Records Maximum and Minimum readings with recall facilities.
Data hold.
Auto power off saves battery life.
Operates from 9V battery.
RS 232 PC serial interface.
Low-friction ball vane wheels is accurate in both high & low velocities.
The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately.
Multi-functions air flow measurement: m/s, km/h, ft/min, knots. mile/h.
Build in temperature measurement ℃/℉.
Thermocouple sensor for Temp. measurement, fast response time.
Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature...etc.
一般規格
電路 (Circuit)
- Custom one-chip microprocessor LSI circuit.
顯示 (Display)
- Dual function display, 13 mm(0.5") super large LCD display with contrast adjustment for best viewing angle.
測量 (Measurement)
- m/s ( meters per second )
- km/h ( kilometers per hour )
- Knot ( nautical miles per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Temperature : ℃ or ℉.
- Data hold.
記憶回叫 (Memory Recall)
- Record maximum & minimum reading value with recall.
感應器結構 (Sensor Structure)
- Air velocity sensor : Conventional twisted van arm and low friction ball bearing design.
- Temperaturesensor : Precision thermistor
關機 (Power off)
- Manual off by push button or Auto shut off after 10 minuite(Not activated during memory record function).
資料輸出 (Data Output)
- RS 232 PC serial interface.
過載指示 (Over load indication)
- Indicated by "- - - -".
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
- Probe : 0 ℃ to 80 ℃ ( 32 ℉ to 176 ℉ ).
操作溼度 (Operating Humidity)
- Max. 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 8.3 mA.
重量 (Weight)
- 381 g/0.84 LB, (included batteries & probe)
尺寸 (Size)
- Main instrument : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
- Sensor Head: Round,72 mm Dia.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Sensor probe......................... 1 PC.
- Carrying Case.................. 1 PC.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/s |
0.4 - 25.0 m/s |
0.1 m/s |
± (2 % + 1 d) |
| km/h |
1.4 - 90.0 km/h |
0.1 km/h |
| mile/h |
0.9 - 55.9 mile/h |
0.1 mile/h |
| knots |
0.8 - 48.6 knots |
0.1 knots |
| ft/min |
80 - 4930 ft/min |
1 ft/min |
± (2 % + 20 ft/min.) |
Remark :
m/s : meters per second ; km/h : kilometers per hour ; mile/h : miles per hour ; knots : nautical miles per hour ; ft/min : feet per minute
溫度 (Air Temperature)
| Measurement |
Range |
Resolution |
Accureacy |
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
|
