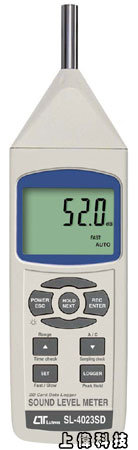

SL-4023SD 記憶式噪音計
特色
-
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
-
測量範圍 : 30dB ~ 130dB(分貝).
-
測量頻率範圍 : 31.5 ~ 8000Hz
-
符合國際規範IEC651Type2
-
A/C頻率加權及時間加權選擇'快&慢選擇
-
自動換檔及手動換檔選擇
-
可記錄最大值,最小值及讀值鎖定功能..
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 245 x 68 x 45mm.
FEATURES
Main functions are designed to meet IEC 61672 class 2.
A & C weighting networks comply with standards.
0.5" standard microphone head.
Time weighting (Fast & Slow) dynamic characteristic modes.
Build External calibration VR.
Auto range & Manual range selection.
Available for external calibration adjustment.
Condenser microphone for high accuracy & long-term stability.
Memory function to store the Max. & Min. value.
Hold and Peak Hold functions.
Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
SD card capacity : 1 GB to 16 GB.
LCD with green light backlight, easy reading.
Can default auto power off or manual power off.
Data hold, record max. and min. reading.
Microcomputer circuit, high accuracy.
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.
Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- Dual function meter's display,
- LCD with green backlight ( ON/OFF ).
測量範圍 (Measurement Range)
- 30 to 130 dB.
解析度 (Resolution)
- 0.1 dB.
功能 (Function)
- dB ( A & C frequency weighting ), Time weighting ( Fast, Slow ), Peak hold, Data hold Record ( Max., Min. ).
精確度 (Accuracy) (23± 5 ℃)
- Characteristics of " A " frequenc weighting network meet IEC 61672 class 2.
Under 94 dB input signal, the accuracy are : - 31.5 Hz : ± 2.0 dB, 63 Hz : ± 1.5 dB, 125 Hz : ± 1.5 dB,
250 Hz : ± 1.4 dB, 500 Hz : ± 1.4 dB, 1 KHz : ± 1.1 dB,
2 KHz : ± 1.6 dB, 4 KHz : ± 1.6 dB, 8 KHz : + 2.1 dB to -3.1 dB, - Remark : The above spec. are tested under the environment RF Field Strength less than 3 V/M & frequency less than 30 MHz only.
頻率加權網路 (Frequency Weighting Network)
- Characteristics of A & C.
- A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
- C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
資料鎖定 (Data hold)
- Freeze the display reading.
峰值鎖定 (Peak hold)
- To keep the peak ( max. ) measurement value.
快慢時間加權 Time weighting (Fast, Slow)
- Fast - t= 200 ms, Slow - t = 500 ms,
- * "Fast" range is simulated the human ear response time.
- * "Slow" range is easy to get the avg. values of vibration sound level.
範圍選擇 (Range selector)
- Auto range : 30 to 130 dB.
- Manual range : 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over & under range indicating.
測量頻率 (Measurement Frequency)
- 31.5 Hz to 8,000 Hz.
麥克風 (Microphone type)
- Electric condenser microphone.
麥克風尺寸 (Size of microphone)
- Out size, 12.7 mm Dia. ( 0.5 inch).
校正器 (Calibrator)
- B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226.
校正 VR (Calibration VR)
- Build in external calibration VR, easy to calibrate on 94 dB level by screw driver.
- * Calibrated via external SOUND CALIBRATOR ( SC-941, optional ).
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set sampling time
- * SD memory card Format
過載指示 (Over Indication)
- Show " - - - - ".
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 8.5 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 14 mA.
重量 (Weight)
- 489 g/1.08 LB.
尺寸 (Size)
- 245 x 68 x 45 mm. ( 9.6 x 2.7x 1.9 inch ).
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- 94 dB sound calibrator : Model : SC-941.
- 94 dB/114 dB sound calibrator : Model : SC-942.
- Wind shield ball : Model : SB-01
- SD Card ( 1 GB )
- SD Card ( 2 GB )
- USB cable : Model : USB-01
- RS232 cable ( isolated RS232 cable ) : Model : UPCB-02.
- Data acqusition software : Model : SW-U801-WIN
- AC to DC 9V adapter.
- Soft carrying case, CA-05A.
- Hard carrying case : Model : CA-06
|
