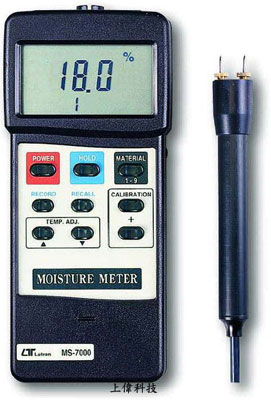

MS-7000 智慧型木材水分計

特色

• 測量範圍 : 9 ~ 30%.

• 內建9大類,150種木頭材質分析校正.

• 具有自我校正功能.

• 可記錄最大值,最小值及讀值鎖定.

• 手動溫度補償 : 0 ~ 50°C.

• RS-232 / USB 輸出介面.(軟體選購)

• Size : 180 x 72 x 32mm.

FEATURES

► Measure moisture content over range 9 % to 30 %.

► 9 material species groups in memory, calibrations for about 150 different species of wood/timber are provided.

► Built-in self-calibration circuit.

► 0 to 50 ℃ manual temp. compensation setting.

► Microprocessor circuit assures maximum possible accuracy, provides special functions and features.

► Super large LCD with dual display.

► Heavy duty & compact housing case, designed for easy carry out & operation.

► Records Maximum & Minimum reading with recall.

► Data hold function to freeze the desired value on display.

► Auto shut off saves battery life.

► RS 232 PC serial interface.

► Built-in low battery indicator.

► Separate pin type moisture probe, easy operation. & remote measurement.

一般規格

應用 (Applications)

For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber.

原理 (Principal)

Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".

預設記憶 (Default Memory for the species)

9 material species groups in memory, calibrations for about 150 different species of wood are provided.

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

13 mm ( 0.5" ) super large LCD display, dual function meter's display.

測量 (Measurement)

Measure moisture content over range 9 % to 30 %.

測棒 (Probe)

Separate 2 pins moisture electrode,

溫度補償 (Temperature Compensation)

Manual temperature compensation of the meter in the range of 0 to 50 ℃.

校正 (Calibration)

Built-in self-calibration circuit by push button on front panel.

資料鎖定 (Data hold)

Freeze the display reading.

取樣時間 (Sampling Time)

Approx. 0.8 sec

資料輸出 (Data Output)

RS 232 PC serial interface.

操作溫度 (Operating Temp. )

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.

電源電流 (Power Current)

 Approx. DC 6.5 mA

重量 (Weight)

330 g/0.73 LB

體積 (Dimension)

Main instrument : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).

Moisture Probe : Round 23 mm Dia. x 165 mm.  Round 0.9 inch Dia. x 6.5 inch.

附件 (Standard Accessory)

Instruction manual................................................................ 1 PC.
Moisture probe......................................................................1 PC.
Extra contact pins..................................................................1 Set.
Hard Carrying Case............................................................... 1 PC
