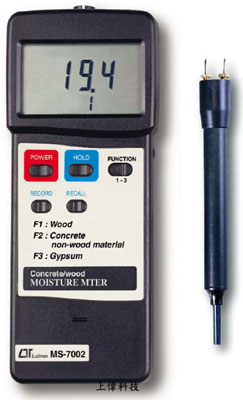

MS-7002 混泥土/木材水分計
特色
木材 : 6 ~ 40%.
混泥土 : 0 ~ 100%.
石膏 : 0.2 ~ 50%.
-
可記錄最大值,最小值及讀值鎖定.
-
RS-232 / USB輸出介面.(軟體選購)
-
Size : 180 x 72 x 32mm.
FEATURES
► 6 % to 40 % moisture range on wood.
► 0 to 100% relative moisture value for Concrete and other non-wood material.
► 0.2 % to 50 % moisture range on gypsum.
► Designed to check the moisture level of wood, concrete, gypsum and other non-wood material.
► Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
► Digital reading with large LCD display.
► Separate pin type moisture probe, easy operation. & remote measurement.
► Records Maximum & Minimum reading with recall.
► Data hold function to freeze the desired value on display.
► Auto shut off saves battery life.
► RS 232 PC serial interface.
► Heavy duty & compact housing case, designed for easy carry out & operation.
► Built-in low battery indicator.
一般規格
應用 (Applications)
- Designed to check the moisture level of wood, concrete, gypsum and other non-wood material.
原理 (Principal)
- Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".
功能/範圍 (Function/Range)
- F1 ( Function 1 ) 6 % to 40 % moisture range on wood.
F2 ( Function 2 ) 0 to 100% relative moisture value for Concrete and other non-wood material.
F3 ( Function 3 ) 0.2 % to 50 % moisture range on gypsum.
解析度 (Resolution)
- 0.1 %.
精確度 (Accuracy)
- ± ( 5 % + 5 d ) @ 23 ± 5 ℃
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- 13 mm ( 0.5" ) super large LCD display
測棒 (Probe)
- Separate 2 pins moisture electrode,
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Records Maximum & Minimum reading value.
關機 (Power off)
- Auto shut off, saves battery life, or manual off by push button.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P, MN1604 ( PP3 ) DC 9V battery .
電源電流 (Power Current)
- Approx. DC 6.5 mA
重量 (Weight)
- 330 g/0.73 LB
體積 (Dimension)
- Main instrument : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).
- Moisture Probe : Round 23 mm Dia. x 165 mm. Round 0.9 inch Dia. x 6.5 inch.
附件 (Standard Accessory)
- Instruction manual................................................................ 1 PC.
Moisture probe......................................................................1 PC.
Extra contact pins..................................................................1 Set.
Hard Carrying Case............................................................... 1 PC
選購附件 (Optional accessories)
- RS232 cable, UPCB-01.
USB cable, USB-01.
Data Acquisition software, SW-U801-WIN.
|
