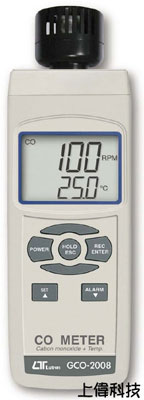

GCO-2008 一氧化碳偵測器
特色
-
一氧化碳測量範圍 : 0 ~ 1000 ppm
-
溫度範圍 : 0 ~ 50 ºC
-
一氧化碳偵測，具有警報功能
-
一氧化碳偵測時，具有自動溫度補償功能
-
可記錄最大值,最小值及讀值鎖定功能..
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 173 x 68 x 42 mm
FEATURES
Two function : CO ( Carbon monoxide ), Temperature.
CO range : 0 to 1,000 ppm x 1 ppm.
Temperature. : 0 to 50 ℃,℃/℉
CO measurement with fast response time.
High repeatability and high accuracy.
stand-alone device, easy to carryout and operation.
CO function with alarm setting.
Large S-TN LCD, high contrast, easy readout.
Data hold function for freezing the desired value on display.
Records Maximum and Minimum readings with Recall.
RS232/USB computer interface.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
Auto shut off is available to save battery life.
Power supply from batteries or DC 9V adapter in.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- dual function LCD display.
測量 (Measurement)
- CO( Carbon dioxide ), Temperature
單位 (Unit)
- CO : ppm
- Temp. : ℃, ℉
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for CO measurement.
先進的設定 (Advanced Setting)
- Auto power off enable/disable setting
- ℃/℉ setting
- CO alarm value setting
警報設定 (Alarm Setting)
- For CO measurement only.
感應器型式
- CO : Electrochemical
- Temperature : Thermister
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
歸零調整 (Zero)
- Build in zero button for offsetting the zero value
資料輸出 (Data Output)
- RS 232 PC serial interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
電源電流 (Power Current)
- Approx. DC 5.6 mA
重量 (Weight)
- 336 g/0.74 LB. @ Battery is included.
尺寸 (Size)
- 210 x 68 x 42 mm (8.3 x 2.7x 1.2 inch)
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Soft carrying case ( CA-05A )............1 PC
選購附件 (Optional & accessories Temp. Probe)
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-801-WIN
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
一氧化碳 CO ( Carbon dioxide )
- 範圍 (Range) : 0 to 1,000 PPM
- 解析度 (Resolution) : 1 ppm
- 反應時間 (Response time *) : < 30 seconds * The response time value is specified to reachthe 90% reading value.
- 重複率 (Repeatability) : < 2%
- 長時間下之零漂移 (Zero drift in long term) : < 5 PPM
- 靈敏度漂移 (Sensitivity drift) : < 5% per year
溫度 ( Temperature )
- 範圍 (Range) : 0 ℃ to 50 ℃,32 ℉ to 122 ℉.
- 解析度 (Resolution) : 0.1 degree
- 精確度 (Accuracy) : 0.8 ℃ ; ± 1.5 ℉.
|
