ORP-14 氧化還原計電極測棒
Features and Applications

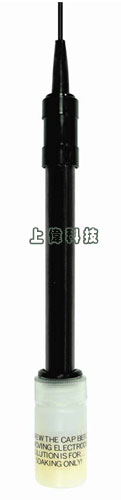

Professional ORP electrode with high accuracy and extreme reliability.
Silver-silver/chloride reference gel.
Epoxy body, BNC connector and 3 meters cable.
12.5 mm Dia, x 150 mm length.
Range : -2,000 to 2,000 mV.
Operation Temp. : 0 to 65 ℃.
To cooperate ORP meter ( ORP-203, ORP-213, PH-206, PH-207, PH-208, YK-2001PH , YK-2005WA, WA-2015, WA-2107SD, NI-214 ).
application for water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, quality control.
規格
電極結構 (Electrode Structure)
- Silver-silver/chloride reference gel.
測量範圍 (Measurement Range)
- -2,000 mV to +2,000 mV.
測量溫度 (Measuring Temp.)
- 0 to 65 ℃ (32 to 150 ℉).
主體材質 (Accuracy)
- Epoxy
連接器 (Connector)
- BNC connector with twin fiber junction, platinum wire pin.
設備保護 (Mechanical Protection)
- With protection bottle on the electrode head.
體積 (Dimension)
- Body length : 120 mm.
Body Dia. : 12 mm.
Cable length : 3000 mm.
|
