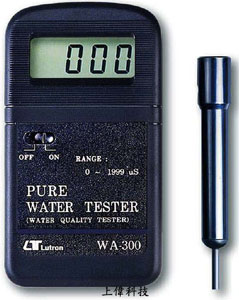

WA-300 水質測試器
特色
-
測量範圍 : 0.1 ~ 199.9 uS
-
精確度 : ±4%
-
適合家庭用水'飲用水'純水製造'冷卻水及一般水質檢測
-
體積小'攜帶方便
-
Size : 131 x 70 x 25mm
GENERAL & PRINCIPAL
The quality of the water is getting much more concerned by the human being and it also an important factor in the industrial sectors, laboratories or other fields.
In industrial sectors, it would be a great help for the quality of the products if using the good water ( more pure water ) in the process.
It may cause several diseases if home drink water existing high conductivity & contain impurities, the Pure Water Tester ( Water Quality Tester) are designed to check the purity of water (water conductivity) also can determine the condition of the " Water Filter " easily and rapidly.
The tester is used to measure the conductivity value (ranging from 0 - 2000 uS) which can therefore judge whether water is pure or not. The conductivity value will become lower if there is much less impurities existed in water (for example, distilled water that its purity is higher than others will get a lower conductivity value of approx. < 10 uS).
Many people always take many kinds of procedures on water treatment by install the different kinds of equipment, such as filter or purifier to improve the quality of water. However, most of people do not know whether the procedures or filter is effective and can con- tribute to the quality of water. General speaking, the impurities will be filtered out if the water process procedures attain the expected result, thus we can use this instrument to measure the conductivity value of purified water and to judge the effect of the filter (or water process procedures).
一般規格
特性 (Features)
- Pocket size, separate probe. Easy carry out & operation.
顯示 (Display)
- 13 mm (0.7") LCD, 3 1/2 d.
測量 (Measurement)
- 0 to 1999 uS.
* uS - micro Simens.
解析度 (Resolution)
- 1 uS.
精確度 (Accuracy)
- ± (4 % + 3 d), * 23± 5 ℃.
取樣時間 (Sampling Time)
- Approx. 1 sec
溫度補償 (Temperature Compensation)
- Automatic, 0 to 50 ℃ (32 to 122 ℉).
過載指示 (Over Range Indication)
- Display shows " 1 ".
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源電流 (Power Current)
- Approx. DC 5 mA
重量 (Weight)
- Approx. 220g/0.48 LB. ( include battery & probe )
體積 (Dimension)
- Main instrument : 131 x 70 x 25 mm ( 5.2 x 2.8 x 1.0 inch).
probe : Round, 22 mm Dia. x 120 mm.
附件 (Standard Accessory)
- Operation Manual......1 PC
Sensor probe................1 PC.
應用 (APPLICATION)
- * Water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college.
* Check the condition of the water filter.
|
