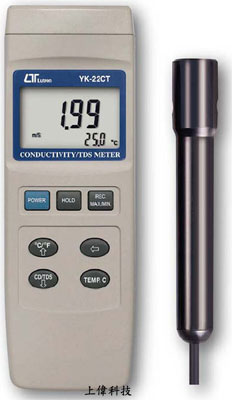

YK-22CT 電導/總固體溶解量測試計

特色

• 測量範圍:

             電導 :  0.2 ~ 2 mS ' 2 ~ 20 mS  ±3%

             TDS  :  0 ~ 2000 ' 10 ~ 20000ppm ±3%

             溫度 :  0 ~ 60.0 ºC ± 0.8 ºC

• 具有自動溫度補償功能

• 可記錄最大值,最小值及讀值鎖定功能..

• RS-232 / USB 輸出介面.(軟體選購)

• Size : 200 x 68 x 30 mm.

FEATURES

► 2 in 1, professional Conductivity and TDS ( Total Dissolved Solids ) Meters.

► Conductivity meter is included two ranges : 2 mS, 20 mS. TDS meter is with 2 ranges : 2,000 PPM, 20,000 PPM. Temperature measurement range is 0 - 60 ℃ / 32 - 140℉

► Conductivity/TDS meter build in automatic temperature compensation circuit, adjustable between 0 to 5.0% per ℃.

► Conductivity/TDS meter use carbon rod electrode for long life, sepearte pobe convenient for remote measurement.

► Microprocessor circuit, intelligent function.

► Records Maximum and Minimum readings with recall.

► Data hold.

► Auto shut off saves battery life.

► RS 232 PC serial interface.

► Temperature function with ℃ & ℉ display unit.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

51 mm x 32 mm, dual function LCD display, 15 mm ( 0.6" ) digit size.
dual function LCD display,

測量 (Measurement)

* Conductivity
* TDS ( Total Dissolved Soloids )
* Temp.

記憶回叫 (Memory Recall)

Records Maximum, Minimum and Average readings with RECALL.

資料鎖定 (Data hold)

Hold the reading value on the display.

關機 (Power off)

Auto shut off saves battery life, or manual off by push button.

資料輸出 (Data Output)

RS 232/USB PC computer interface.

過載指示 (Over input Indication)

"- - - -" symbol on the display.

取樣時間 (Sampling Time)

Approx. 0.8 sec

操作溫度 (Operating Temp. )

0 to 50 ℃ - main instrument.
0 to 60 ℃ - Conductivity/CT probe only.

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

Heavy duty type, 006P DC 9V battery MN1604 ( PP3 ) or equivalent.

電源電流 (Power Current)

 Approx. DC 6.0 mA. Approx. DC 4.2 mA.

重量 (Weight)

210 g/0.46 LB ( meter only ).
290 g/0.64 LB ( meter and probe ).

體積 (Dimension)

Main instrument : 195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch ).
Conductivity/TDS probe : Round, 22 mm Dia. x 120 mm length.

附件 (Standard Accessory)

Conductivity/TDS probe, YK-200PCT...1 PC.
Operation manual............................. 1 PC.
Carrying case, CA-06.........................1 PC.

選購附件 (Optional accessories)

1.413 mS Conductivity Standard Solution.........CD-14
RS232 cable,........................ UPCB-02
USB cable,............................USB-01
Application Software..............SW-U801-WIN

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

電導度/總固體計規格 Conductivity/TDS meter specifications

* Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* mS - milli Simens    * PPM - parts per million

應用 (APPLICATION)

*AQUARIUMS * FOOD PROCESSING * PAPER INDUSTRY * SCHOOLS & COLLEGES
* BEVERAGE * PHOTOGRAPHY * PLATING INDUSTRY * SWIMMING POOLS
* FISH HATCHERIES * LABORATORY * QUALITY CONTROL * WATER CONDITIONING
