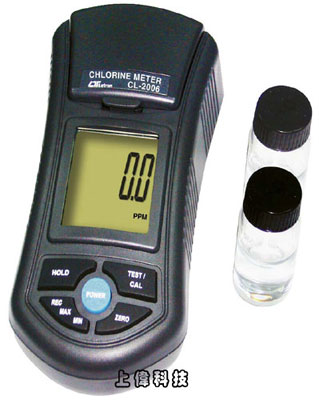

CL-2006 餘氯測試儀
特色
-
測量範圍 : 0 ~ 3.50ppm (mg/L)
-
精確度 : ±0.02ppm (mg/L)
-
光源：發光二極體，波長525nm
-
光源偵測：光電管
-
取樣容量：10mL
-
可記錄最大值,最小值及讀值鎖定.
-
Size : 155 x 76 x 62mm
FEATURES
The meter measures the Free and Total chlorine ( CL ) in the 0.00 to 3.50 ppm ( mg/L ).
The measuring method is an adaptation of the USEPA Method 330.5 for waste water and Standard Method 4500-Cl G for drinking water.
The advanced optical system based on a special narrow band LED lamp that allows most accurate and repeatable reading.
Friendly and powerful calibration function are able to validate good performance of your meter at any time.
1.00 ppm Free standard solution and 1.00 ppm Total standard solution are includes as the standard accessories.
The unique optics structure, enables the instrument to read with high resolution : 0.01 ppm ( mg/L ).
Splash waterproof on the front panel.
Jumbo LCD, easy readout.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Battery operated for field and on-site testing convenience.
Data hold function for freezing the desired value on display.
Records Maximum and Minimum reading with Recall.
Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
Auto shut off is available to save battery life.
Application : Test swimming pool, municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 41 mm x 34 mm
範圍 (Range)
- Free chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ).
Total chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ).
解析度 (Resolution)
- 0.01 ppm ( mg/L ).
精確度 (Accuracy)
- ± 0.02 ppm ( mg/L ). @ 1.00 ppm ( mg/L )
光源 (Light source)
- LED, 525 nm.
光源偵測器 (Light detector)
- Photo diode
反應時間 (Response time)
- Less than 10 seconds.
樣品音量 (Sample volume)
- 10 mL.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
方法 (Method)
- The measuring method is an adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G.
- * The reaction between free ( total ) chlorine and the DPD reagent cause a pink tint in the sample.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
校正點 (Calibration points)
- Zero chlorine.
- 1.00 ppm ( Free chlorine ).
- 1.00 ppm ( Total chlorine ).
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 6 PCs, or equivalent.
電源電流 (Power Current)
- Stand by : Approx. DC 4 mA.
- Testing : Approx. DC 12 mA.
重量 (Weight)
- 320 g/0.70 LB. @ Battery is included.
尺寸 (Size)
- 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)
附件 (Standard Accessory)
- * Hard cayying case, CA-08.................1 PC
* Instruction manual...........................1 PC
* 1.0 ppm Free Chlorine standard solution, CF-01.......1 PC
* 1.0 ppm Total Chlorine standard solution, CT-01. .......... 1 PC
* Zero Chlorine standard solution, CL-01.....................1 PC
* Empty testing bottle.........................2 PCs
* Clean cloth.......................................1 PC
* Free Chlorine DPD powder................10 PCs
* Total Chlorine DPD powder...............10 PCs
選購附件 (Optional & accessories Temp. Probe)
- * Free Chlorine DPD powder ( 10 PCs ), Model : CFP-10
* Total Chlorine DPD powder ( 10 PCs ), Model : CTP-10
* Empty testing bottle, Model : 0601
* 1.0 ppm Free Chlorine standard Model : CF-01
* 1.0 ppm Total Chlorine standard, Model : CT-01
* Zero Chlorine standard solution, Model : CL-01
|
