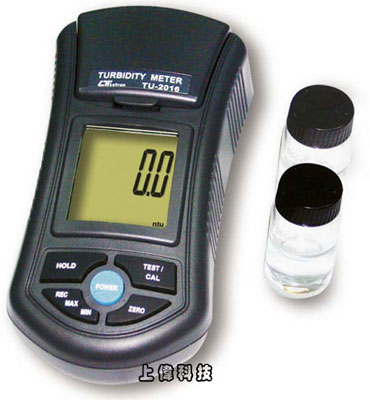

TU-2016 攜帶式濁度計
特色
-
測量範圍 : 0 ~ 50.00NTU，50 ~ 1000NTU
-
精確度 : ±5%F.S 或 ±0.5NTU
-
光源：發光二極體，波長850nm
-
光源偵測：光電管
-
符合ISO7027規範
-
校正點：0NTU，100NTU
-
取樣容量：10mL
-
可記錄最大值,最小值及讀值鎖定.
-
Size : 155 x 76 x 62mm
FEATURES
Designed to meet ISO 7027.
NTU ( Nephelometric TURBIDITY Unit ) measuring unit.
Wide and auto measurement range : 0 to 1,000 NTU.
High resolution : 0.01 NTU/1 NTU.
The unique optics structure, enables the instrument to read low value of TURBIDITY to the high level up to 1,000 NTU.
Four operation buttons and two calibration points, easy operation.
Jumbo LCD, easy readout.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Battery operated for field and on-site testing convenience.
Data hold function for freezing the desired value on display.
Records Maximum and Minimum readings with Recall.
Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
Auto shut off is available to save battery life.
Application : Test municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 41 mm x 34 mm
範圍 (Range)
- 0.00 to 50.00 NTU, 50 to 1,000 NTU
* NTU : Nephelometric Turbidity Unit
* Auto range
解析度 (Resolution)
- 0.01 NTU/ 1 NTU
精確度 (Accuracy)
- ± 5 % F.S. or ± 0.5 NTU, which ever is greater.
光源 (Light source)
- LED, 850 nm.
光源偵測器 (Light detector)
- Photo diode
標準 (Standard)
- Meet ISO 7027.
反應時間 (Response time)
- Less than 10 seconds.
樣品音量 (Sample volume)
- 10 mL.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
校正點 (Calibration points)
- 0 NTU, 100 NTU.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 6 PCs, or equivalent.
電源電流 (Power Current)
- Stand by : Approx. DC 3.5 mA.
- Testing : Approx. DC 36 mA.
重量 (Weight)
- 320 g/0.70 LB. @ Battery is included.
尺寸 (Size)
- 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)
附件 (Standard Accessory)
- Testing bottle with 0 NTU standard solution.............1 PC
Testing bottle with 100 NTU standard solution......... 1 PC
Empty testing bottle............................................... 2 PCs
Clean cloth.............................................................1 PC
Clean solution ( Distill water )..................................1 bottle
Hard carrying case, CA-08.......................................1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Testing bottle with 100 NTU standard solution, TU-100NTU
* Testing bottle with 0 NTU standard solution, TU-0NTU
* Empty testing bottle, 0601
|
