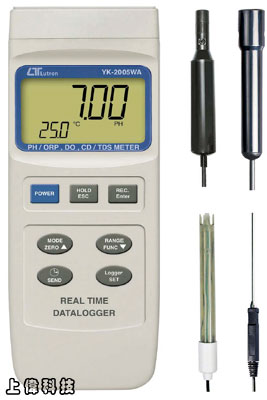

YK-2005WA 多功能水質檢測儀
特色
酸鹼度 : 0 ~ 14.00PH
氧化還原 : -1999mV ~ +1999mV
電導度 : 0.1μS ~ 199.9mS
總固體溶解量 : 0.1 ~ 132000ppm
溫度 : 0 ~ 60.0ºC
溶氧：0 ~ 20.0mg/L
氧氣：0 ~ 100.0%
-
一機四功能：PH/ORP、DO、CD/TDS
-
內建記憶體，可記錄16000筆資料
-
可記錄最大值,最小值及讀值鎖定功能..
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 203 x 76 x 38mm.
FEATURES
One meter for multi purpose operation : PH/ORP, CD/TDS, Dissolved Oxygen.
pH : 0 to 14.00 pH, ORP : ± 1999 mV.
Conductivity : 200 uS/2 mS/20 mS/200 mS.
Dissolved oxygen : 0 to 20.0 mg/L.
Real time data logger ( record year, month, date, hour, minute, second ), 16,000 data logger.
Real time data logger, build in clock ( hour-MIN-sec., year-month-date ).
Auto data record, 16,000 Data logger no.
Wide sampling time adjustment range from one second to 8 hours 59 minutes 59 seconds.
RS232 computer interface.
MAX, MIN, Data hold.
Can default auto power off or manual power off.
Optional PH, ORP, CD/TDS, Dissolved Oxygen and ATC probe.
DC 1.5V ( UM-3, AA ) x 4 PCs or DC 9V adapter in.
PH meter function can select PH or ORP.
PH measurement can select ATC or manual temperature adjustment.
PH measurement can make the auto calibration for pH 7, pH 4 and pH 10 or other value.
Conductivity measurement can select uS/mS or TDS
Conductivity measurement can select Temp. Coefficient of measurement solution.
ATC for the conductivity measurement.
Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement.
Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
DO use the automatic Temp. compensation.
DO meter build in " % SALT " & " Mountain Height " compensation value adjustment.
Super large LCD display with contrast adjustment for best viewing angle.
Separate probe, easy for operation of different measurement environment.
Wide applications: water conditioning, aquariums,beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm.
測量 (Measurement)
- PH/ORP 1. Conductivity ( uS, mS )
Conductivity/TDS(Total Dissolved Solids)
Dissolved Oxygen
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec. @ Auto datalogger
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
@Can default auto power or manual power off.
@When default auto power function, power will off automatically after 10 min., if no button be pressed.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. - Main instrument.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ).
- DC 9V adapter input. @ AC/DC power adapter is optional.
電源電流 (Power Current)
- Operatiron : Approx. DC 28 mA
Clock ( power off ) : Approx. DC 1 uA.
重量 (Weight)
- 365 g/ 0.8 LB. @ Battery is included.
尺寸 (Size)
- 203 x 76 x 38 mm
附件 (Standard Accessory)
- Instruction manual....................... 1 PC
Hard arrying case ( CA-06 )...........1 PC
選購附件 (Optional & accessories Temp. Probe)
- * PH electrode.........PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-05T, PE-03K7
* ATC ( Automatic Temperature Probe )................ TP-07
* pH 7 buffer solution............. PH-07
* pH 4 buffer solution............. PH-04
* Conductivity probe.................CDPB-03
* 1.413 mS Conductivity Standard Solution.............CD-14
*Oxygen probe........................OXPB-11
* Spare Probe head with Diaphragm set ...........OXHD-04
* Probe-filling Electrolyte...........OXEL-03
* AC to DC 9V adapter.
* RS232 cable, UPCB-02.
* USB cable, USB-01
* Data Acquisition software, SW-U801-WIN.
* Data Logger software, SW-DL2005.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
A.酸鹼度/氧化還原 (PH/mV)
- PH Electrode : Optional, Any PH electrode with BNC connector.
- Measurement : PH : 0 to 14 PH ; mV : -1999 mV to 1999 mV
- Input Impedance : 10^12 ohm
- Temperature Compensation for pH measurement
- Manual : 0 to 100 ℃, be adjusted by push button on front panel.
- Automatic ( ATC ) : With the optional temperature probe ( TP-07 ) 0 to 65 ℃.
- pH Calibration : PH7, PH4, and PH10, 3 points calibration ensure the best linearity and accuracy.
| Measurement |
Range |
Resolution |
Accuracy |
| PH |
0 to 14 PH |
0.01 PH |
± (0.02 PH + 2 d) |
| mV |
0 to 1999 mV |
1 mV |
± (0.5% + 2 d) |
- * PH accuracy is based on calibrated meter only.
B.電導度 (Conductivity)
- Conductivity probe : Optional, Carbon rod electrode for long life.
- Function
- * Conductivity ( uS, mS )
* TDS ( Total Dissolved Solids, PPM )
* Temperature ( ℃,℉)
- Temperature Compensation : Automatic from 0 to 60 ℃ (32 - 140 ℉), with temperature compensation factor variable between 0 to 5.0% per C.
- Probe Operating Temperature : 0 to 60 ℃.
- Probe Dimension : Round, 22 mm Dia. x 120 mm length.
- Optional probe and accessories
- * Conductivity probe........................CDPB-03
- * 1.413 mS Conductivity Standard Solution.........CD-14
1.電導度 Conductivity ( uS, mS )
| Range |
Measuring values |
Resolution |
Accuracy |
| 200 uS |
0.1 uS to 199.9 uS. |
0.1 uS |
± (2 % F.S. + 1 d)
* F.S. - Full scale
|
| 2 mS |
0.2 mS to 1.999 mS. |
0.001 mS |
| 20 mS |
2 mS to 19.99 mS |
0.01 mS |
| 200 mS |
20 to 200.0 mS |
0.1 mS |
總固體溶解量 TDS ( Total Dissolved Solids )
| Range |
Measurement |
Resolution |
Accuracy |
| 200 PPM |
0 to 132 PPM |
0.1 PPM |
± (2% F.S.+1d)
* F.S. - Full scale
|
| 2,000 PPM |
132 to 1,320 PPM |
1 PPM |
| 20,000 PPM |
1,320 to 13,200 PPM |
10 PPM |
| 200,000 PPM |
13,200 to 132,000 PPM |
100 PPM |
- * Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS. - * PPM - parts per million
溫度 (Temperature)
| Function |
Measuring Range |
Resolution |
Accuracy |
| ℃ |
0 ℃ to 60 ℃ |
0.1 ℃ |
0.8 ℃ |
| ℉ 3 |
2 ℉ to 140 ℉ |
0.1 ℉ |
1.5 ℉ |
C.溶氧
- Oxygen Probe : Optional, The polarographic type oxygen probe with
- Measurement & Range
- Dissolved Oxygen : 0 to 20.0 mg/L ( liter ).
Oxygen in Air : 0 to 100.0 %.
Temperature : 0 to 50 ℃.
- Resolution
- Dissolved Oxygen : 0.1 mg/L.
Oxygen in Air : 0.1 % O2 .
Temperature : 0.1 ℃.
- Accuracy (23± 5 ℃)
- Dissolved Oxygen : ± 0.4 mg/L.
Oxygen in Air : ± 0.7% O2.
Temperature : ± 0.8 ℃/1.5 ℉.
- Probe Compensation & Adj.
- Temperature : 0 to 50 ℃, Automatic
Salt : 0 to 39 % Salt
Height ( M. T.) : 0 to 8900 meter
- Probe Weight : 335 g/0.74 LB ( batteries & probe included )
- Probe Size : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )
- Optional Accessories
- * Oxygen probe...................................OXPB-11
* Spare Probe head with Diaphragm set ........ OXHD-04
* Probe-filling Electrolyte.................... OXEL-03
|
