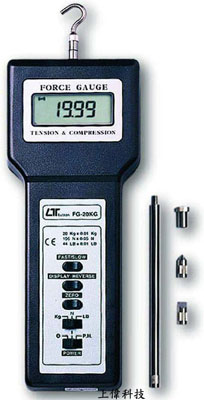

FG-20KG/FG-20KG-RS 拉壓力計

特色

• 秤量範圍 : FG-20KG : 0.01~20公斤±0.5%

• FG-20KG-RS有RS-232連接介面

• 拉力與壓力測量法選擇切換

• 公克 / 磅 / 牛頓單位切換

• 反應時間選擇 : 快/0.2秒 ' 慢/0.6秒

• 可抓取瞬間最大荷重值

• 手動歸零裝置,提高準確度

• Size : 227 x 83 x 39mm

FEATURES

► Wide capacity, high resolution, high accuracy, high repeatability.

► 3 kind display unit.

► Tension & compression capability .

► Peak hold ( Max. load ) can be held in display during make tension or compression measurement.

► Zero button can operate both for normal measuring & the " peak hold " operation.

► Full capacity zero (tare) control capability.

► Fast/Slow response time push button.

► Positive or reverse display direction select.

► Full line accessories ( adapters ) are included.

► Hand held & stand mounting available.

► Low power consumption gives long battery life.

► Build in low battery indicator.

► Microprocessor circuit & exclusive load cell transducer.

► Over load protection.

► RS-232 computer interface ( FG-20KG-RS ).

► Professional test stand ( optional ).

規格

顯示 (Display)

LCD ( Liquid crystal display ). 5 digits, 10 mm ( 0.4" ) digit size.

顯示方向 (Display Direction)

Positive or Reverse direction, select by the push button on the front panel.

功能 (Function)

Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).

峰值鎖定 (Peak hold)

Will freeze the display value of the Peak load ( Max. load ).

歸零 (Zero)

Zero button can be operated both for "normal force" or "peak hold" operation

測量容量 (Measurement Capacity)

20.00 Kg/44.10 LB/196.10 Newton.

解析度 (Resolution)

0.01 Kg/0.01 LB/0.05 Newton.

最小顯示 (Min. Display)

0.01 Kg/0.01 LB/0.05 Newton.

精確度 (Accuracy)

± (0.5 % + 2 d), within 23℃ ± 5℃.

單位選擇 (Unit select)

Kg/LB/Newton

更新時間 (Update time)

Fast Approx. 0.2 second.
Slow Approx. 0.6 second.

過載指示 (Over range Indicator)

Display show " - - - - " when in over range status

過載容量 (Overload Capacity)

Max. 30 kg.

歸零/容器重量控制 (Zero/tare Control)

Max. full capacity.

電路 (Circuit)

Exclusive microprocessor LSI-circuit.

滿刻度偏移 (Full Scale Deflection)

Approx. 0.4 mm max.

電源供應 (Power Supply)

6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included).

電源損耗 (Power Consumption)

 Approx. DC 24 mA

轉換器 (Transducer)

Exclusive load cell.

操作溫度 (Operating Temp. )

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

體積 (Dimension)

227 x 83 x 39 mm ( 8.9 x 3.3 x 1.5 inch ).

重量 (Weight)

551 g ( 1.2 LB )/with batteries.

掛鉤 (Mounting Holes)

Mounting holes are provided on the back case, easy stand mounting.

資料輸出 (Data output) * For FG-20KG-RS

RS-232 serial computer interface

附件 (Standard Accessory)

Operating manual ........................ 1 PC.
Flat-head adapter..........................1 PC.
Hook adapter ...............................1 PC.
Cone head adapter .......................1 PC.
Chisel head adapter ......................1 PC.
120 mm extension rod...................1 PC.
Carrying case ...............................1 PC.

選購附件 (Optional Accessories)

* Test stand, Model : FS-1001
* Wedge grip, Model : WG-01
* Software for data logging & data recorder, Model : SW-U801-WIN
* RS232 cable available for force gauge. Model : UPCB-04.
