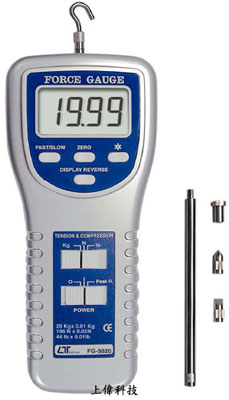

FG-5020 拉壓力計
特色
-
秤量範圍 : 0.01 ~ 20.00公 克 ±0.5%
-
顯示器有背光顯示功能
-
拉力與壓力測量法選擇切換
-
公斤 / 磅 / 牛頓單位切換
-
反應時間選擇 : 快/0.2秒 ' 慢/0.6秒
-
可抓取瞬間最大荷重值
-
手動歸零裝置,提高準確度
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 209 x 89 x 43mm
FEATURES
Large LCD display with back light.
20 Kg, wide capacity, high resolution, high accuracy, high repeatability.
3 kind display unit : g, oz, Newton.
Tension & compression capability .
Peak hold ( Max. load ) can be held in display during make tension or compression measurement.
Zero button can operate both for normal measuring & the " peak hold " operation.
Full capacity zero (tare) control capability.
Fast/Slow response time push button.
Positive or reverse display direction select.
Full line accessories ( adapters ) are included.
Hand held & stand mounted gauges are available.
Low power consumption gives long battery life.
Build in low battery indicator.
Microprocessor circuit & exclusive load cell transducer.
Over load protection.
RS-232 computer interface.
Built-in DC 9V power adapter input socket.
Professional test stand ( optional ).
規格
顯示 (Display)
- LCD ( Liquid crystal display ). 5 digits, 16 mm ( 0.63" ) digit size. Back light.
顯示方向 (Display Direction)
- Positive or Reverse direction, select by the push button on the front panel.
功能 (Function)
- Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).
峰值鎖定 (Peak hold)
- Will freeze the display value of the Peak load ( Max. load ).
歸零 (Zero)
- Zero button can be operated both for "normal force" or "peak hold" operation
單位選擇 (Unit select)
- g/oz/Newton
測量容量 (Measurement Capacity)
- 20.00 Kg/44.10 LB/196.10 Newton.
解析度 (Resolution)
- 0.01 Kg/0.01 LB/0.05Newton.
最小顯示 (Min. Display)
- 0.02 Kg/0.07 LB/0.3 Newton,
精確度 (Accuracy)
- ± (0.5 % + 2 digits), within 23± 5℃.
* Under the test weight on 10 Kg & 20 Kg.
更新時間 (Update time)
- Fast Approx. 0.2 second.
Slow Approx. 0.6 second.
過載指示 (Over range Indicator)
- Display show " - - - - " when in over range status
資料輸出 (Data output)
- RS-232 serial computer interface
過載容量 (Overload Capacity)
- Max. 30 kg.
滿刻度偏移 (Full Scale Deflection)
- Approx. 0.4 mm max.
歸零/容器重量控制 (Zero/tare Control)
- Max. full capacity.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
電源供應 (Power Supply)
- 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included).
電源損耗 (Power Consumption)
- Approx. DC 28 mA
轉換器 (Transducer)
- Exclusive load cell.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
體積 (Dimension)
- 215 x 90 x 45 mm ( 8.5 x 3.5 x 1.8 inch ).
重量 (Weight)
- 650 g ( 1.43 LB )/with batteries.
掛鉤 (Mounting Holes)
- Main instrument with mounting holes are provided on the back case, easy stand mounting.
附件 (Standard Accessory)
- Operating manual .................... 1 PC.
Flat-head adapter......................1 PC.
Hook adapter ...........................1 PC.
Cone head adapter ...................1 PC.
Chisel head adapter ................. 1 PC.
120 mm extension rod...............1 PC.
Carrying case ...........................1 PC.
選購附件 (Optional Accessories)
- * Test stand, Model : FS-1001
* Wedge grip, Model : WG-01
* RS232 cable, Model : UPCB-01
* Software for data logging & data recorder, Model : SW-U801-WIN
|
