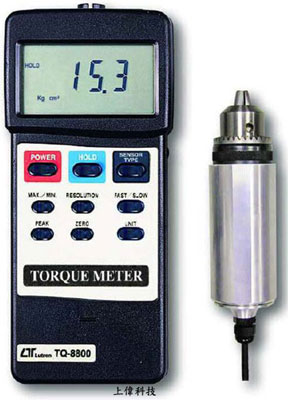

TQ-8800 扭力計

特色

• 測量範圍：0.01 ~ 15.00 Kg-cm

• 三種單位切換，公斤-公分 / 磅-英吋 / 牛頓-公分

• 瞬間最大測量值鎖定功能

• 具有取樣時間快 / 慢選擇

• 讀值鎖定及紀錄測量中之最大 / 最小值

• RS-232 / USB 連接介面 (軟體選購)

• 主機Size：180 X 72 X 32mm

• 扭力感應器Size：直徑48mm * 160mm

FEATURES

► Professional torque meter with 15 Kg-cm torque probe, full set.

► 3 kind display unit select button of Kg-cm, LB-inch and Newton-cm in the front panel.

► Peak value measurement

► Data hold button to freeze the desired reading.

► Peak hold measurement to hold the peak value.

► High/Low resolution select by push button.

► Fast/Low sampling select by push button.

► Record Maximum and Minimum readings with recall.

► RS 232 computer interface.

► Super large LCD display, easy readout.

► Microcomputer circuit, high performance.

► Separate torque probe, easy operation.

► Auto shut off saves battery life.

► Built-in low battery indicator.

► Heavy duty & compact housing case.

► Complete set with the hard carrying case.

規格

顯示 (Display)

61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size.

測量 (Measurement)

Torque value, peak hold, data hold, Max. & min. value.

顯示單位 (Display unit)

Kg-cm/LB-inch/Newton-cm.

感應器 (Sensor)

Exclusive torque sensor.

電路 (Circuit)

Exclusive microprocessor LSI-circuit.

資料鎖定 (Data hold)

Freeze the desired reading.

峰值鎖定 (Data hold)

To hold the peak value.

記憶回叫 (Memory Recall)

Maximum & Minimum value.

關機 (Power off)

Auto shut off saves battery life or manual off by push button.

取樣時間 (Sampling Time)

Fast/Slow select.

資料輸出 (Data Output)

RS 232 PC serial interface.

感應器型式按鍵 (Sensor type button)

To confirm the sensor type exactly

操作溫度 (Operating Temp. )

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.

電源損耗 (Power Consumption)

 Approx. DC 20 mA

體積 (Dimension)

Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
Torque probe: Round 48 mm Dia. x 160 mm.

固定頭大小 (Chuck head size)

1/2 to 20 UNF, 1.5 to 13 mm,

重量 (Weight)

Meter : 230 g ( 0.50 LB ).
Probe : 600 g ( 1.32 LB )

附件 (Standard Accessory)

Instruction manual........... 1 PC.
15 Kg torque probe........... 1 PC.
Carrying Case................... 1 PC.

選購附件 (Optional Accessories)

* RS232 cable, Model : UPCB-01
* USB cable, Model : USB-01
* Software for data logging & data recorder, Model : SW-U801-WIN

顯示單位/解析度
