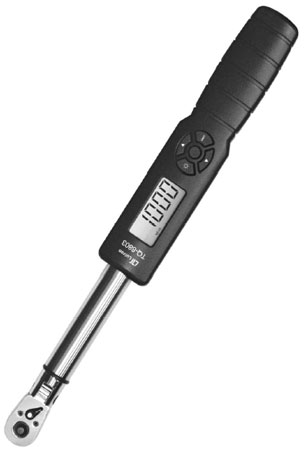

TQ-8803 電子式扭力板手
特色
-
測量範圍 : 50 ~ 1000 公斤/公分
-
三種單位選擇 : 公斤 / 公分 , 磅/吋 , 牛頓 / 公分
-
精確度 : ±1% F.S.
-
警報值設定及蜂鳴警示功能
-
測量值鎖定及背光顯示功能
-
測頭尺寸 : 正方形 3/8 吋 (9.53mm)
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 450 x 55 x 37mm
FEATURES
Professional and Heavy duty torque wrench.
Max. meaurement capacity: 1000 Kgf-cm, 868 lbf-inch, 9,810 Newton-cm.
Unit : Kgf-cm, lbf-in ( lbf-inch ) and N-cm ( Newton-cm ).
Auto data hold function to freeze the last measurement reading.
LCD display with backlight, easy readout.
Alarm value setting with beeper sound.
Size of square drive : 3/8 inch square ( 9.53 mm square ).
LCD display with backlight, easy readout.
Auto shut off circuit to save battery life,
Microcomputer circuit, high performance.
Metallic heavy duty & compact housing case.
Power supply : DC 1.5V battery ( UM-4, AAA ) X 4 PCs.
一般規格
顯示 (Display)
- 57 mm x 25 mm LCD display.
測量功能 (Measurement function)
- Torque value, Auto data hold. Alarm beeper setting.
測量單位 (Measurement unit)
- Kgf-cm, lbf-inch, Newton-cm.
* Kgf : Kg-force, lbf : pound-force
功能鍵 (Function buttons)
- 5 buttons :
Power button
Backlight button
Unit button
▲ button ( for alarm setting )
▼ button ( for alarm setting )
感應器 (Sensor)
- Exclusive torque sensor.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
▼, ▲ 按鍵 (▼, ▲ button)
- For alarm value setting.
資料鎖定 (Data hold)
- Freeze the desired reading.
背光鍵 (Backlight button)
- To switch on/off the LCD backlight.
方型轉換頭大小 (Size of square drive)
- 3/8 inch square ( 9.53 mm square ).
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 1.5 V battery ( UM-4, AAA ) x 4 PCs.
電源損耗 (Power Consumption)
- Approx. DC 5 mA ( baklight off ).
重量 (Weight)
- 1050 g ( 2.3 LB ).
體積 (Dimension)
- 450 x 55 x 37 mm ( 12.2 x 2.0 x1.8 inch ).
附件 (Standard Accessory)
- Instruction manual........... 1 PC.
電氣規格 ELECTRICAL SPECIFICATIONS ( 23 5 ℃ )
| Display Unit |
Measuing range |
Resolution |
Accuracy |
| Kg-cm |
50 to1000 Kgf-cm |
1 Kgf-cm |
± 2% F.S.@ From 10% to 100 % of full scale .
± ( 2% reading + 5 d )@ Less than 10 % of full scale.
|
| LB-inch |
43 to 868 lbf-inch |
1 lbf-inch |
| Newton-cm |
490 to 9810 N-cm |
2 N-cm |
|
