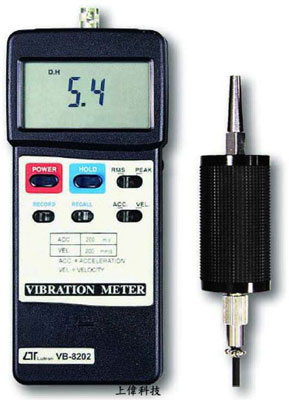

VB-8202 振動計

特色

• 測量範圍 : 速度(VEL) 0.5 ~ 199.9 mm/s

                              加速度(ACC) 0.5 ~ 199.9 m/ss

• 頻率範圍 : 40 ~ 5KHz

• 精確度 : ±5%

• 讀值鎖定及記錄測量中之最大/最小值

• RS-232 / USB 連接介面(軟體選購)

• Size : 180 x 72 x 32mm

FEATURES

► Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.

► Separate vibration probe.

► Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.

► Professional vibration meter supply with vibration sensor, full set.

► Velocity measuring range 200 mm/s.

► Acceleration range 200 m/s .

► RMS & Peak measurement.

► Data hold.

► Memory function to record max. and min. reading with recall.

► Complete set with hard carrying case.

一般規格

顯示 (Display)

61 mm x 34 mm supper large LCD display.

15 mm ( 0.6" ) digit size.

測量 (Measurement)

Velocity, Acceleration, RMS value, Peak value, Data hold, Max. & Min. value.

範圍 (Range)

Velocity : 200 mm/s : 0.5 to 199,9 mm/s.

Acceleration : 200 m/S^2 : 0.5 to 199.9 m/s^2.

頻率範圍 (Frequency range)

10 Hz to 1 KHz.

* Sensitivity relativive during the the frequency range meet ISO 2954.

精確度 (Accuracy)

± ( 5 % + 2 d ) reading , @ 160 Hz, 80 Hz. @ 23 ± 5 ℃

校正點 (Calibration point)

Velocity : 50 mm/s ( 160 Hz )

Acceleration : 50 m/s^2( 160 Hz )

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

資料鎖定 (Data hold)

Freeze the desired reading.

峰值鎖定 (Peak hold)

To measure the peak value.

記憶回叫 (Memory Recall)

Maximum & Minimum value.

關機 (Power off)

Auto shut off saves battery life or manual off by push button.

取樣時間 (Sampling Time)

Approx. 1 sec

資料輸出 (Data Output)

RS 232 PC serial interface.

操作溫度 (Operating Temp. )

0 to 50 ℃ (32 to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

電源供應 (Power Supply)

Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.

電源損耗 (Power Consumption)

Approx. DC 6 mA.

重量 (Weight)

Meter : 230 g/0.50 LB
Probe : 38 g/0.09 LB

尺寸 (Size)

Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
Vibration probe : 8.9 mm Dia x 42 mm length

Cable length : 1.2 meter.

附件 (Standard Accessory)

Instruction manual.................... 1 PC

Cable with plugs........................... 1 PC.

Vibration sensor................1 PC.
Sensing head.................................... 1 PC.

Magnetic base...................1 PC.
Carrying Case.................. 1 PC.

選購附件 (Optional & accessories Temp. Probe)

RS232 cable, UPCB-01

USB cable, USB-01

Data Acquisition software, SW-U801-WIN
