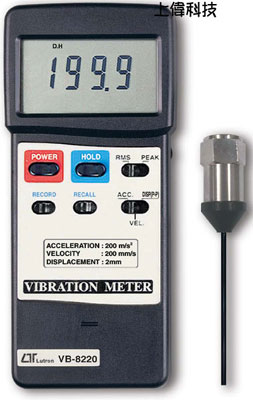

VB-8220 振動計
特色
-
測量範圍 : 速度(VEL)： 0.5 ~ 199.9 mm/s
加速度(ACC)：0.5 ~ 199.9 m/s2
位移(DSP)：0.005 ~ 1.999 mm
-
頻率範圍 : 10 ~ 1 KHz
-
精確度 : ±5%
-
讀值鎖定及記錄測量中之最大/最小值
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 180 x 72 x 32 mm
FEATURES
Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
Professional vibration meter supply with vibration sensor and magnetic base, full set.
Velocity measuring range : 200 mm/s.
Acceleration measuring range : 200 m/s^2
Displacement measuring range : 2 mm ( p-p ).
RMS & Peak measurement.
Wide frequency range.
Data hold button to freeze the desired reading.
Memory function to record maximum and minimum reading with recall.
Separate vibration probe, easy operation
RS 232 computer interface.
Optional data acquisition software for data record & datalogger.
Super large LCD display.
Microcomputer circuit, high performance.
Auto shut off saves battery life.
Built-in low battery indicator. consumption
Heavy duty & compact housing case.
Complete set with the hard carrying case.
一般規格
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
測量 (Measurement)
- Velocity, Acceleration, Displacement, RMS value, Peak value, Data hold, Max. & Min. value.
範圍 (Range)
- Velocity : 200 mm/s : 0.5 to 199,9 mm/s.
- Acceleration : 200 m/S^2 : 0.5 to 199.9 m/s^2.
- Displacement ( p-p ) : 2 mm : 0.005 to 1.999 mm
* p-p : Peak to Peak
頻率範圍 (Frequency range)
- 10 Hz to 1 KHz.
- * Sensitivity relativive during the the frequency range meet ISO 2954.
精確度 (Accuracy)
- ± ( 5 % + 2 d ) reading , @ 160 Hz, 80 Hz. @ 23 ± 5 ℃
校正點 (Calibration point)
- Velocity : 50 mm/s ( 160 Hz )
- Acceleration : 50 m/s^2( 160 Hz )
- Displacement : ( p-p ) 0.05 mm ( 160 Hz )
電路 (Circuit)
- Exclusive microcomputer circuit.
資料鎖定 (Data hold)
- Freeze the desired reading.
峰值鎖定 (Peak hold)
- To measure the peak value.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 8 mA.
重量 (Weight)
- Meter : 230 g/0.50 LB
Probe with magnetic base : 110 g/0.24 LB
尺寸 (Size)
- Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
Vibration sensor probe : Round 18 mm Dia. x 40 mm.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Vibration sensor ( VB-82 ).......... 1 PC.
- Cable........................................ 1 PC.
- Magnetic base...................1 PC.
Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- RS232 cable, UPCB-01
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
|
