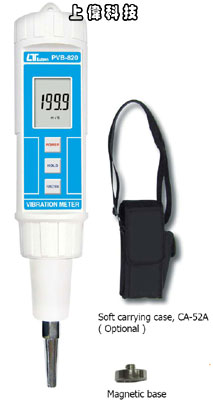

PVB-820 筆型振動計
特色
-
測量範圍 : 速度(VEL) 0 ~ 200 mm/s
加速度(ACC) 1 ~ 200 m/ss
-
頻率範圍 : 10 ~ 1 KHz
-
精確度 : ±5%
-
公制/英制測量單位切換
-
符合ISO2954規範
-
Size : 175 x 40 x 32 mm
FEATURES
Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
Pen type digital vibration meter, vibration sensor is built in, all in one.
Acceleration, Velocity measurement, RMS measurement value.
Metric & Imperial display unit.
Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
Microcomputer circuit, intelligent function, high accuracy.
LCD display, easy read out.
Complete set with the Test pin and the Magnetic base are the standard accessories.
Built-in low battery indicator.
Heavy duty & compact housing case.
IP65 protection.
Compact size, light weight.
Soft carrying case is the optional accessory
一般規格
顯示 (Display)
- LCD, size : 20 mm x 28 mm.
測量 (Measurement)
- Velocity, Acceleration * RMS value.
頻率範圍 (Frequency range)
- 10 Hz to 1 KHz.
- * Sensitivity relativive during the the frequency range meet ISO 2954. Refer to table 1, page. 12.
電路 (Circuit)
- Exclusive microcomputer circuit.
歸零調整 (Zero adjust)
- Build in the Zero adjustment VR, easy to make adjustment.
取樣時間 (Sampling Time)
- Approx. 1 sec
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5V battery ( UM-4/AAA ) x 4 PCs.
電源損耗 (Power Consumption)
- Approx. DC 12 mA.
重量 (Weight)
- 240 g ( 0.53 lb ).
尺寸 (Size)
- Meter : 175 x 40 x 32 mm ( 6.9 x 1.6 x 1.3 inch ). * Meter without sensing head,
Sensing head : 110 g/0.24 LB Round 9 mm Dia. x 30 mm.
附件 (Standard Accessory)
- Instruction manual......................... 1 PC.
Meter with sensing head................. 1 Set
Magnetic base................................ 1 PC. Point
Soft carrying case, CA-52A........... 1 PC.
電器規格 ELECTRICAL SPECIFICATIONS
加速度 Acceleration ( RMS )
| Unit |
m/s² |
| Range |
0.5 to 199.9m/s² |
| Resolution |
0.1m/s² |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
g @ 1 g = 9.8m/s² |
| Range |
0.05 to 20.39 g |
| Resolution |
0.01 g |
| Accuracy |
± ( 5 % + 2 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
ft/s² |
| Range |
2 to 656 ft/s² |
| Resolution |
1ft/s² |
| Accuracy |
± ( 5 % + 2 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
速度 Velocity ( RMS )
| Unit |
mm/s |
| Range |
0.5 to 199.9 mm/s |
| Resolution |
0. 1 mm/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
cm/s |
| Range |
0.05 to 19.99 cm/s |
| Resolution |
0. 01 cm/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
inch/s |
| Range |
0.02 to 7.87 inch/s |
| Resolution |
0.01 inch/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
|
