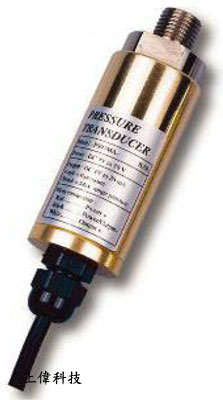

PS-93DV-XXBAR 壓力傳送器

特色

• 五種型號選擇 :

             PS93DV-2BAR ( 0 ~ 2BAR / 29PSI )

             PS93DV-5BAR ( 0 ~ 5BAR / 72.5PSI )

             PS93DV-10BAR ( 0 ~ 10BAR / 145PSI )

             PS93DV-20BAR ( 0 ~ 20BAR / 290PSI )

             PS93DV-50BAR (0 ~ 50BAR / 725PSI )

• 輸出訊號：直流 (DC) 0 ~ 100 mV

• 工作電壓 : 直流 (DC) 9 ~ 30 V

• 精確度 : ±1%

• Size : 直徑30mm x 長85mm

規格

最大容量及型號 (Max capacity & model)

供應電壓 (Supply voltage)

DC 9V to 30 V

轉換器埠連接器 (Transducer Port Connector)

1/4" NPT or 1/4" PS. * Included one adapter connector that convert the 1/4" NPT to 1/4 " PS.

差距 (Span)

± 1 % F.S.
@ Within 10 ℃ to 40 ℃ .
@ Linearity + Hysteresis + Repeatability.

歸零 (Zero)

± 2 % F.S. @ Within 10 ℃ to 40 ℃

輸出阻抗 (Output Impedance)

100 k ohm.

操作溫度 (Operating Temp. )

0 ℃ to 60 ℃ ( 32 ℉ to 140 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

輸出 (Output)

Output : DC 0V to 100 mV
0 DCV = 0 pressure
100 DC mV = Max. range pressure

尺寸 (Size)

30 mm dia. x 85 mm.

重量 (Weight)

160 g.

纜線長度 (Cable length)

1 meter.

芯線連接 (Wire Connection)

Red.......................................... Power +
Connection Black........................................ Power -
White....................................... Signal +
Green ...................................... Signal -
