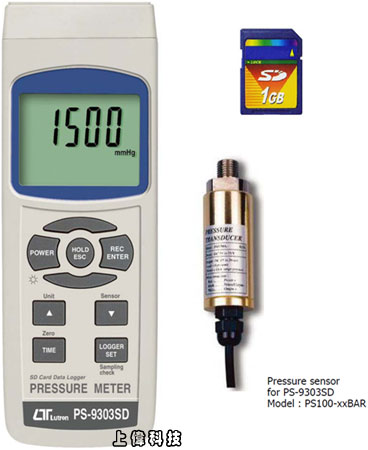

PS-9303SD 記憶式壓力計
特色
-
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
-
主機使用 : 2 , 5 , 10 , 20 , 50 , 100 , 200 , 400 bAR等壓力感應器,可針對不同壓力測量更換適合之壓力感應器(隨機只附1只感應器,其餘為選購品)
-
八種單位選擇切換 : mbar ' psi ' Kg/cm2 ' mm/Hg ' inch/Hg ' meter/H2o ' inch/H2O ' Atmosphere
-
讀值鎖定及記錄測量中之最大/最小值
-
RS-232 / USB 連接介面(軟體選購)
-
Size : 180 x 72 x 32mm
FEATURES
Meter can cooperate with 2, 5, 10, 20, 50, 100, 200, 400 Bar sensor, new calibration procedures are not necessary when change the new sensor .
When change the new pressure sensor, just select pressure type ( 2, 5, 10, 20, 50, 100, 200, 400 bar ) on the front panel button. The sensor type will memorize into the circuit permanently.
8 kind pressure units ( Bar, Psi, Kg/cm^2, mm Hg, inch Hg, meter H20, inch H20, Atmosphere ), unit select by push button on the front panel.
Full line optional pressure sensors are available.
Cooperate the external pressure sensor that its output signal is 100 mV for full scale.
Zero button on the front panel, easy adjust the zero value of pressure sensor.
Available push button gain adjustment, usage for calibration precisely if necessary.
Separate pressure sensor, easy for remote measurement.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
Real time SD memory card Datalogger, it Built-in Clock and Calendar,real time data recorder , sampling time set from 1 sec to 8 hour 59 min. 59 sec.
Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
SD card capacity : 1 GB to 16 GB.
LCD with green light backlight, easy reading.
Can default auto power off or manual power off.
Data hold, record max. and min. reading.
Microcomputer circuit, high accuracy.
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.
Wide applications : Measure pneumatic pressures, measure automobile engine pressures, pressure for super heat measurements, hydraulic servo controls, refrigeration, air conditioning, food processing.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
感應器型式 (Sensor type)
- Can cooperate with optional 2, 5, 10, 20, 50, 100, 200, 400 bar sensor, new calibration are not necessary when change the new sensor .
顯示單位 (Display units)
- mbar, psi, Kg/cm^2, mm/Hg, inch Hg, meter H20, inch H20, Atmosphere.
精確度 (Accuracy)
- ± ( 0.5% + 1 d )
* Under the signal from the sensor is at full scale ( 100 mV ).
* Meter only.
* Within 23 ℃± 5 ℃
壓力感應器 (Pressure sensor)
- Cooperate the external pressure sensor that its output signal is 100 mV for full scale.
歸零調整 (Zero adjust)
- Push button on the front panel.
差距調整 (Span adjust)
- Push button gain adjustment, usage for calibration precisely if necessary.
從感應器之輸入信號 (Input signal from sensor)
- DC 100 mV for full Scale.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 1 sec
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Set temperature unit to ℃ or ℉
- * Set CD temperature compensation factor
- * Set CD to TDS or TDS to CD, CD only
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
- 489 g/1.08 LB.
體積 (Dimension)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Standard Accessory)
- * Instruction manual............. 1 PC.
選購附件 (Optional Accessories)
- Pressure sensor, PS100-xxBAR,* Refer to page
Hard carrying case, CA-06.
Soft carrying case, CA-05A.
SD memory card ( 1 GB )
SD memory card ( 2 GB )
AC to DC 9V adapter.
USB cable, USB-01.
RS232 cable, UPCB-02.
Data Acquisition software,SW-U801-WIN.
電器規格 ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Sensor type |
2 bar |
5 bar |
10 bar |
20 bar |
50 bar |
100 bar |
400 bar |
| |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
| bar |
2 |
0.002 |
5 |
0.005 |
10 |
0.01 |
20 |
0.02 |
50 |
0.05 |
100 |
0.1 |
400 |
0.5 |
| psi |
29 |
0.02 |
72.5 |
0.1 |
145 |
0.2 |
290 |
0.2 |
725 |
1 |
1450 |
2 |
5800 |
5 |
| Kg/cm^2 |
2.040 |
0.002 |
5.095 |
0.005 |
10.19 |
0.01 |
20.40 |
0.02 |
50.95 |
0.05 |
101.9 |
0.1 |
408 |
0.5 |
| mm Hg |
1500 |
2 |
3750 |
5 |
7500 |
10 |
15000 |
20 |
37500 |
50 |
75000 |
100 |
300000 |
500 |
| inch Hg |
59.05 |
0.05 |
147.6 |
0.1 |
295.2 |
0.2 |
590.5 |
0.5 |
1476 |
1 |
2952 |
2 |
11810 |
10 |
| meter H20 |
20.40 |
0.02 |
50.95 |
0.05 |
101.9 |
0.1 |
204.0 |
0.2 |
509.5 |
0.5 |
1019 |
1 |
4075 |
5 |
| inch H20 |
802 |
1 |
2006 |
2 |
4010 |
5 |
8020 |
10 |
20050 |
20 |
40100 |
50 |
160600 |
200 |
| Atmosphere |
1.974 |
0.002 |
4.935 |
0.005 |
9.87 |
0.01 |
19.74 |
0.02 |
49.35 |
0.05 |
98.7 |
0.1 |
394.5 |
0.5 |
|
