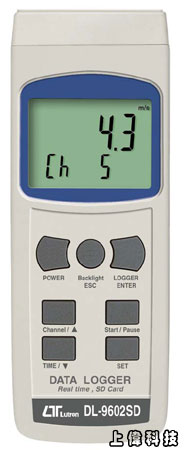

DL-9602SD 資料集錄器
特色
-
適用 Lutron 所生產具有RS-232輸出介面之儀錶
-
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
-
內建時間功能 ' 時間顯示及時間記錄功能
-
自動記錄取樣時間 : 2秒 ~ 8時59分59秒
-
手動記錄 , 即時紀錄數據 , 可設定99組數據文件
-
紀錄比數 : 可達數百萬數據資料
-
Size : 178 x 68 x 44mm
FEATURES
Real time SD memory card Datalogger, it can cooperate with most LUTRON instruments if it build in the computer interface.
Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 8 hours 59 minutes 59 seconds.
Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different place ( location ) No. ( place 1 to place 99 ).
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
SD card capacity : 1 GB to 16 GB.
Can set the numerical decimal point character to " . " or " , " with default, then Datalogger data that saved into the SD card can be used in different country.
Can set max. 9 channels data input with default.
DC 1.5V battery ( UM-3 , AA ) x 6 or DC 9V adapter in.
LCD with green light backlight, easy reading.
RS232 signal output, can connect the external computer.
|
|
